Cylindrical grinding machines

Our cylindrical grinding machines with internal grinding device are used in metal grinding to grind cylindrical, conical or flat workpieces with high precision.

Wagner CNC cylindrical grinding machines or internal cylindrical grinding machines offer a high degree of flexibility and are capable of processing a wide range of materials such as steel, ceramics and plastics.

Optionally with FANUC and Heidenhain control; with orbital diameters of 320-450 mm and grinding lengths of 600 - 1,000 mm.

WCG NC 2550

Universal cylindrical grinding machine with built-in hydraulics, internal grinding device and 80 mm Ø grinding spindle.

mm
mm
min−1
kg
500
260
30-350
3.200
details

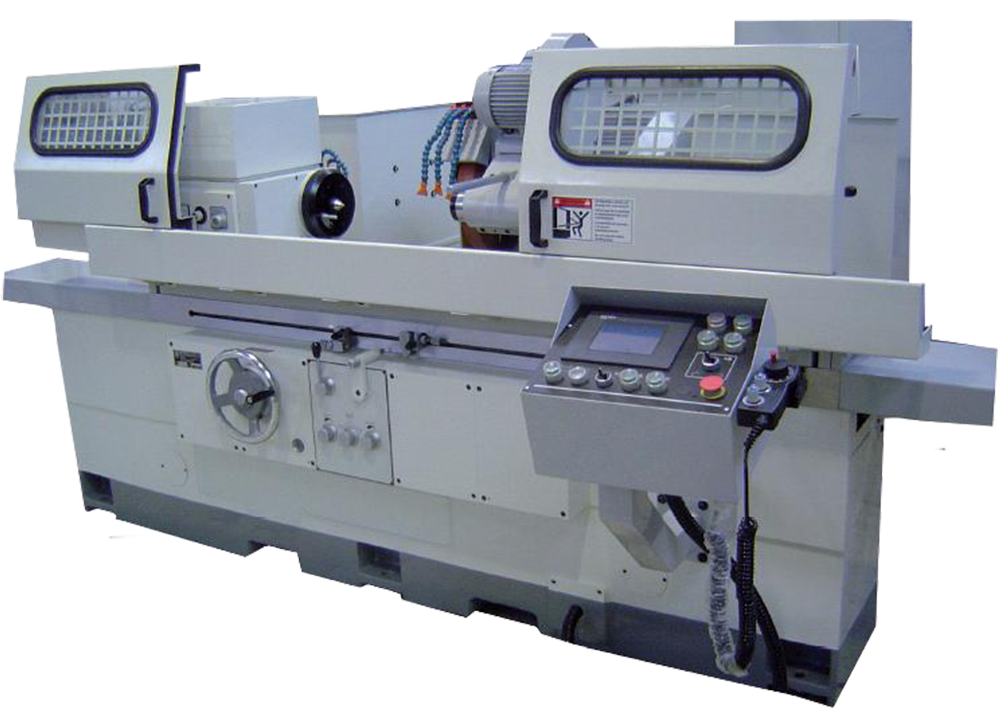

WCG NC 3260 - 50200 series

Hydraulic, automatic universal cylindrical grinding machines; internal cylindrical grinding machines

mm
mm
min−1
kg
600 - 2.000 mm
300 - 480 mm
25 - 600 U/min.
3.700 - 6.700 kg
details

WCG CNC 2550

CNC cylindrical grinding machine or internal cylindrical grinding machine WCG 2550 CNC with 2-axis CNC control.

mm
mm
min−1
kg
500
250
10-600 U/min.
3.800
details

You could also use these machines

Slant-bed-lathes

  • with cycle input or CNC control
  • 2-axis and 3-axis version
Show Details

Conventional Lathes

  • for complex profile machining
  • with CNC-controlled axes on both sides
Show Details
