CNC 5-axis machining centers

The 5-axis concept in gantry design impresses with its high rigidity and stability. The basic structure (U-shaped) made of solid cast iron enables an even distribution of forces during machining and excellent accessibility to the work area.

With Siemens 828 DSL control, rotary table in the C-axis (360°), machining of workpieces up to 3,000 mm, 24-station double-arm tool changer and inline spindle with direct drive 10,000 rpm.

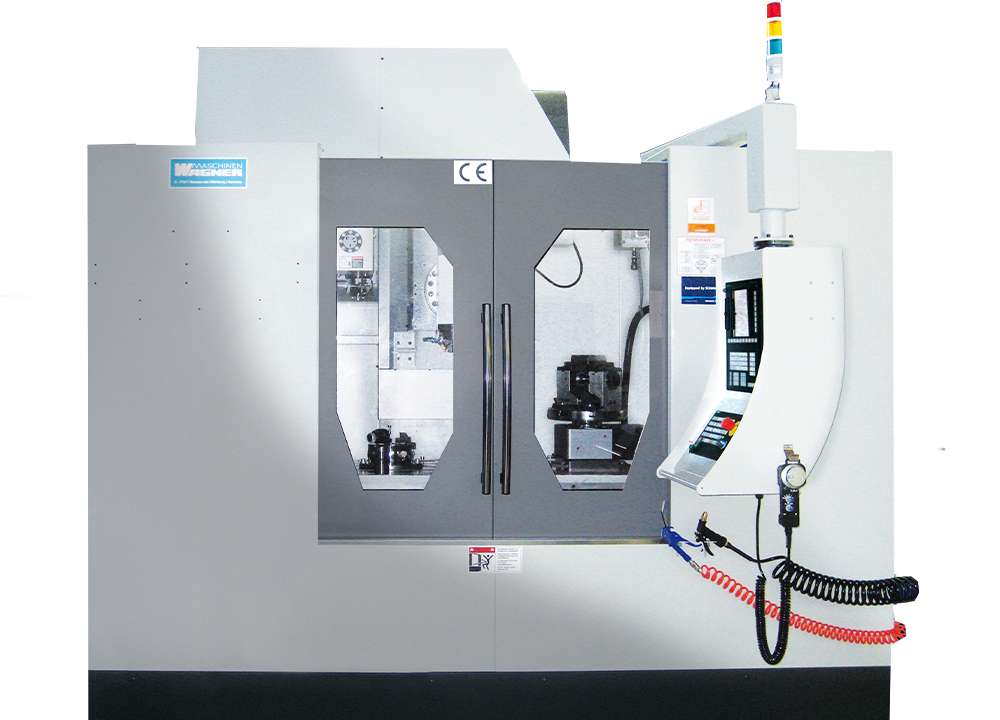

WMC 1100 B

This high-performance CNC machining center has been specially developed to meet the ever-increasing demands of machining. Available with the following controls: Siemens, Heidenhain.

mm
kW
min−1
kg
1.100 x 600 x 830
9-24
1-12.000
7.300-8.000
Show details

WFS 5AX series

CNC moving column machining center WFS 2000/3000/4000/5000/6000-5AX with Siemens 828-D control / Heidenhain TNC 530i

mm
kW
min−1
kg
2.000-6.000 x 610 x 700/ 800
21,6-30,9
12.000
14.000-30.000
Show details

WFS L 5AX series

CNC moving column machining center WFS L 2000/3000/4000/5000/6000-5AX with Siemens 828-D control / Heidenhain TNC 640.

mm
kW
min−1
kg
2.000-6.000 x 800/700 x 700/800
21,6/30,9
12.000
18.000-42.000
Show details

BFM 5A aluminum

5-axis rod machining center especially for machining aluminium

  • A-axis in the head +/- 120 degrees
  • C-axis in the head +/- 245 degrees
  • With Siemens 828 D control
mm
kW
min−1
kg
6.000 x 500 x 800
55
18.000
16.000
Show details
