OUR DIVERSE RANGE

Separator roller conveyors

D-System

A solid, extremely stable original modular system enables variable roller positions and very simple installation of accessories
Manual or digital measuring device, cover plates between individual rollers, material chute, additional rollers including plastic rollers, material storage, coolant tray.
Extremely high stability and durability thanks to the use of 3 mm thick galvanized sheet metal for all parts.
The roller conveyors are fitted with 200, 300 or 400 mm wide steel rollers.
Individual modules that can be connected to each other are 2 to 3 m long.

Roller conveyor	Machine type	Length mm	Width mm	Order no.
D 200/2000 mm/6 rolls	Teba 130 / S315, 350	2000	200	651240
D 200/3000 mm/10 rolls	Teba 130 / S315, 350	3000	200	651243
D 300/2000 mm/6 rolls	Teba 235, 260	2000	300	651241
D 300/3000 mm/10 rolls	Teba 235, 260	3000	300	651244
D 400/2000 mm/6 rolls	Teba 300/VCT	2000	400	651242
D 400/3000 mm/10 rolls	Teba 300/VCT	3000	400	651245
K-SYSTEM
K 400 / 1000 mm base	Teba 330	1000	400	651315
K 400 / 2000 mm base	Teba 330	2000	400	651224
K 400 / 1000 mm extension	Teba 330	1000	400	651316
K 400 / 2000 mm extension	Teba 330	2000	400	651224
Vertical rear roller	Teba 330		400	651328
Front vertical roller	Teba 330			651329
K 650/1000 mm	Teba 500/640	1000	650	651246
K 650/2000 mm	Teba 500/640	2000	650	650810

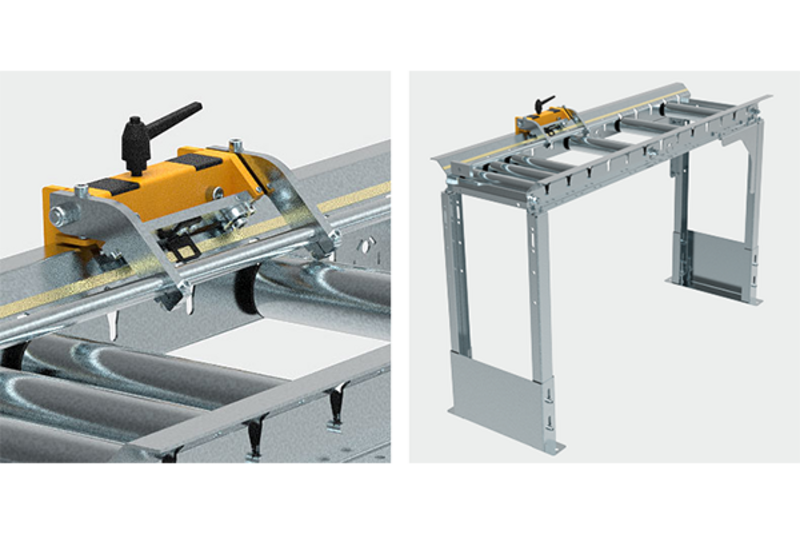

Simple, effective dimensioning of the desired length.
It can be applied to all D roller conveyors.
The required length is set manually on an analog scale (mm) with simple locking mechanism.
Extremely stable and adjustable stop system is designed to swivel,
to prevent material jamming and thus damage to the saw blade.

Roller conveyor with man. Measuring stop with scale	Machine type	Length mm	Width mm	Order no.
DO 200/2000 mm	Teba 130 /S315,350	2000	200	651247
DO 200/3000 mm	Teba 130 /S315,350	3000	200	651250
DO 200/4000 mm	Teba 130 /S315,350	4000	200	651253
DO 200/5000 mm	Teba 130 /S315,350	5000	200	651256
DO 200/6000 mm	Teba 130 /S315,350	6000	200	651259
DO 300/2000 mm	Teba 235,260/VCT	2000	300	651248
D 300/3000 mm/10 rolls	Teba 235,260/VCT	3000	300	651244
DO 300/3000 mm	Teba 235,260/VCT	3000	300	651251
DO 300/4000 mm	Teba 235,260/VCT	4000	300	651254
DO 300/5000 mm	Teba 235,260/VCT	5000	300	651257
DO 300/6000 mm	Teba 235,260/VCT	6000	300	651260
DO 400/2000 mm	Teba 300/VCT	2000	400	651249
DO 400/3000 mm	Teba 300/VCT	3000	400	651252
DO 400/4000 mm	Teba 300/VCT	4000	400	651255
DO 400/5000 mm	Teba 300/VCT	5000	400	651258
DO 400/6000 mm	Teba 300/VCT	6000	400	651261
K-System with man. Measuring stop with scale
Manual measuring stop + roller table 2000 mm				651318
Manual measuring stop + roller table 3000 mm				651319
Manual measuring stop + roller table 4000 mm				651320
Manual measuring stop + roller table 5000 mm				651321
Manual measuring stop + roller table 6000 mm				651322

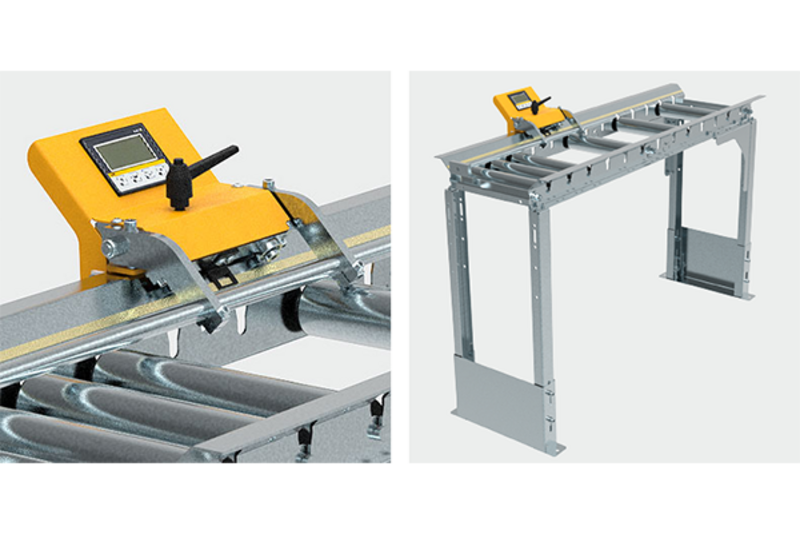

The measuring device ensures precise and easy setting of the desired length with the
position indicator on the digital display with an accuracy of 0.1 mm.
It can be applied to all D roller conveyors.
The desired length is set manually with a simple locking mechanism. The system is powered by
a long-life battery.
Extremely stable and adjustable stop system is swivel-mounted to prevent
material jamming and thus damage to the saw blade

Roller conveyor with man. measuring stop+ digital display	Machine type	Length mm	width mm	Order no.
DOD 200/2000 mm	Teba 130 /S315,350	2000	200	651262
DOD 200/3000 mm	Teba 130 /S315,350	3000	200	651265
DOD 200/4000 mm	Teba 130 /S315,350	4000	200	651268
DOD 200/5000 mm	Teba 130 /S315,350	5000	200	651271
DOD 200/6000 mm	Teba 130 /S315,350	6000	200	651274
DOD 300/2000 mm	Teba 235,260/VCT	2000	300	651263
DOD 300/3000 mm	Teba 235,260/VCT	3000	300	651266
DOD 300/4000 mm	Teba 235,260/VCT	4000	300	651269
DOD 300/5000 mm	Teba 235,260/VCT	5000	300	651272
DOD 300/6000 mm	Teba 235,260/VCT	6000	300	651275
DOD 400/2000 mm	Teba 300/VCT	2000	400	651264
DOD 400/3000 mm	Teba 300/VCT	3000	400	651267
DOD 400/4000 mm	Teba 300/VCT	4000	400	651270
DOD 400/5000 mm	Teba 300/VCT	5000	400	651273
DOD 400/6000 mm	Teba 300/VCT	6000	400	651276
K-System man. measuring stop + digital display
	with roller table 2000 mm			651323
	with roller table 3000 mm			651324
	with roller table 4000 mm			651325
	with roller table 5000 mm			651326
	with roller table 6000 mm			651327
