linear guided
Automatic tool changer 30n positions
with C-axis on the table 350/400/500mm diameter
technical data
|

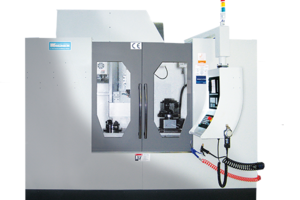

WMC 1100 B
|
|
|---|---|
| table clamping surface, mm | 600 x 1.300 |
| Table clamping surface Rotary table, mm | 600 x 900 |
| T-slot number /size, mm | 18 x 5 x 125 |
| max. Table load, kg | 800 |
| Travel X/Y/Z, mm | 1.100 x 600 x 830 |
| Spindle nose-to-table distance, mm | 20 -850 |
| Guide distance X/Y/Z, mm | 466 /840 /526 |
| Swivel head B-axis | -30 /+110° |
| Positioning accuracy, arc. sec. | 20 |
| Repeat accuracy, arc. sec. | 3 |
| Smallest setting Precision worm wheel | 0,001° |
| Spindle taper | SK 40 /DIN 69871A |
| speed, rpm | 80 -12.000 |
| spindle motor, kW |
S6 60% 22,5 kW S1 100% 18 kW |
| Number of magazine positions | 30 |
| Tool holder | SK 40 /DIN 69871A |
| Max. tool diameter, mm Tool diameter, mm | 77,5 |
| Max. Tool weight, kg | 7 |
| Tool change time, sec. | 2,4 |
| Chip-to-chip time, sec. | 4,5 |
| feed X/Y/Z-axis, mm/min | 10.000 |
| Rapid traverse: longitudinal and transverse /vertical, mm/min | 36 /36 /18 |
| machine weight, approx. kg | 7.300 |
| dimensions (LxWxH), mm | 3.684 x 2700 x 3300 |
HIGHLIGHTS

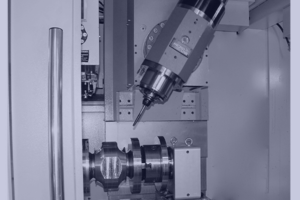

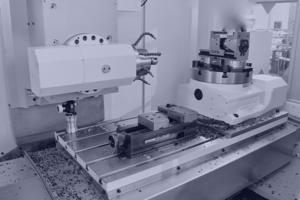

- The milling head is the 4th axis (B-axis), linear guided 5-axis machining center
- Automatic tool changer 30 positions,
- Double arm tool changer
- With C-axis on the table 350/400/500mm diameter also as A-axis optionally with tailstock
- Electronic handwheel, portable (with Siemens 828 D)
- Spindle blow-out device
- Option with rotary table C-axis diameter 350 /500 mm
- Motor spindle with 12,000 rpm
