Optimal price-performance ratio
Cross-bed construction in C-shape
Double-arm tool changer
technical data
|
WME 1300
|
WME 1600
|
WME 2000
|
WME 2500
|
WME 3000
|
|
|---|---|---|---|---|---|
| table clamping surface, mm | 1.500 x 400 | 700 x 1.900 | 700 x 2.300 | 700 x 2.800 | 700 x 3.000 |
| number of T-slots | 16 | 6 | 6 | 6 | 6 |
| T-slot width/spacing | 4 /63 | 18 /105 | 18 /105 | 18 /105 | 18 /105 |
| max. Table load, kg | 700 | 1.000 | 1.000 | 1.200 | 1.200 |
| longitudinal travel, mm | 1.300 | 1.600 | 2.000 | 2.500 | 3.000 |
| transverse travel, mm | 500 | 800 | 800 | 800 | 800 |
| vertical travel | 570 | 630 | 630 | 630 | 630 |
| Spindle nose-to-table distance, mm | 100-670 | 170-800 | 170-800 | 170-800 | 170-800 |
| Spindle center-to-column distance, mm | 510 | 850 | 850 | 850 | 850 |
| Spindle taper | SK 40 | SK 40 /DIN 69871 | SK 40 /DIN 69871 | SK 40 /DIN 69871 | SK 40 /DIN 69871 |
| speed, rpm | 60-8.000 | 50-8.000 | 50-8.000 | 50-8.000 | 50-8.000 |
| spindle motor, kW |
FAGOR: 7,5 SIEMENS: 9 /12 |
11 /15 | 11 /15 | 11 /15 | 11 /15 |
| Feed motor X/Y/Z | 7,3 /9,3 Nm | 4,9 kW | 4,9 kW | 4,9 kW | 4,9 |
| feed X/Y/Z-axis, mm/min | 0-6.000 | 5.000 | 5.000 | 5.000 | 5.000 |
| rapid traverse | 7.500 | 8.000 | 8.000 | 8.000 | 8.000 |
| repeat accuracy, mm | +/- 0,005 /300 | +/- 0,005 | +/- 0,005 | +/- 0,005 | +/- 0,005 |
| positioning accuracy, mm | +/- 0,01 /300 | +/- 0,01 | +/- 0,01 | +/- 0,01 | +/- 0,01 |
| coolant pump | 0,1 | 0,1 | 0,1 | 0,1 | 0,1 |
| dimensions (LxWxH), mm | 3.500 x 2.300 x 2.750 | - | - | - | - |
| machine weight, approx. kg | 4.600 | 6.900 | 7.300 | 9.100 | 9.500 |
HIGHLIGHTS
- Optimum price-performance ratio
- Cross-bed design in C-shape
- High-quality double-arm tool changer

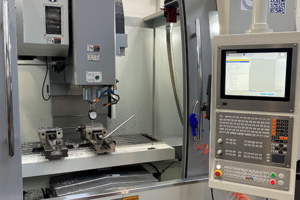

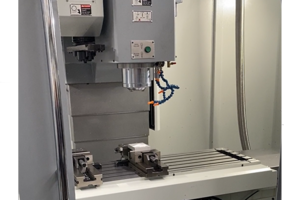

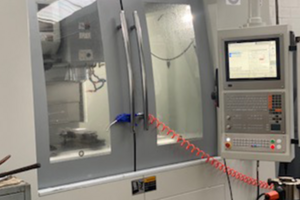

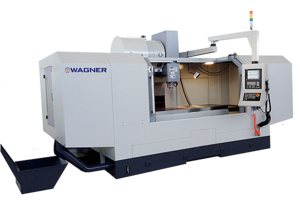

Pictures
