FSG AD IV series 1224 - 1640

Precision spindle with 4 angular contact ball bearings
Stepless spindle speed
Vertical via AC servo motor CNC axis

Technical Data

FSG AD IV 1224
In stock
FSG AD IV 1632
FSG AD IV 1640
In stock
Max. Sanding length, mm 610 mm 810 mm 1.015 mm
Max. Grinding width incl. wheel, mm 305 mm 405 mm 405 mm
Table travel, mm 650 mm 850 mm 1.050 mm
Max. Cross travel, mm 295 mm 395 mm 395 mm
Max. Distance between table surface/spindle center, mm 610 mm 610 mm 610 mm
Table-floor distance, mm 970 mm 980 mm 980 mm
Workpiece weight without magnetic plate, kg 230 kg 350 kg 440 kg
Workpiece weight with magnetic plate, kg 145 kg 175 kg 220 kg
Table size, mm 300 x 600 mm 400 x 800 mm 400 x 1.000 mm
T-slot number /size, mm 1/14 mm 1/14 mm 1/14 mm
Table speed adjustable, lengthwise, rpm 500 - 1.800 U/min. 500 - 1.800 U/min. 500 - 1.800 U/min.

HIGHLIGHTS

- Heat exchanger control cabinet
- Longitudinal and transverse axis needle bearing
- Flange with grinding wheel
- 0.001 internal resolution
- AC servo motor in the Z. axis with encoder
- Leveling screws

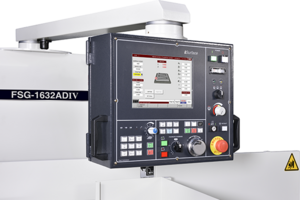

- Electronic handwheel for vertical and transverse
- Minimum vertical feed 0.001mm
- Jog movement buttons for all three axes
