TEBA 260 DGA - CNC
Schneider-Elektrik control unit with 60 programs
Programs freely selectable and linkable
Material feed with reversing tongs or pusher
technical data
|
TEBA 260 DGA - CNC
|
|
|---|---|
| saw blade dimensions, mm | 3.150 x 27 x 0,9 |
| cutting speed, m/min. | 37 / 70 Option stepless 15-90 |
| motor power, kW | 2,2 |
| weight, kg | 1.500 |
| dimensions (LxWxH), mm | 2.200 x 3.100 x 1.300 |
| mm at 90° | 260 |
| mm at +45° | 170 |
| mm at 90° | 230 x 230 |
| mm at +45° | 150 x 150 |
HIGHLIGHTS
- Schneider-Elektrik control system with 60 programs
- Freely selectable and linkable programs
- Material feed with reversing tongs or pusher
- Robust and solid design
- Cast saw frame
- Cast iron machine table
- Cast iron turntable
- Cast material clamping vice with quick adjustment
- Saw blade guides with guide rollers and carbide plates

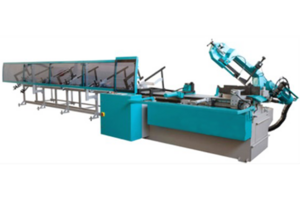

- Also available as TEBA 330 A-NC 90°; an automatic double-column bandsawing machine especially for 90° degree cuts
