Two solidly designed saw blade guides with guide rollers / carbide guide plates
Infinitely variable cutting speeds from 10-100 m/min.

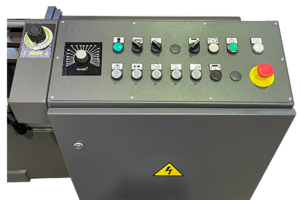

Programmable sawing functions

technical data

TEBA 502 HA/GHA
TEBA 602 HA/GHA
TEBA 702 HA/GHA
TEBA 640 GHA
saw blade dimensions, mm 5.620 x 41 x 1,3 6200 x 41 x 1,3 6.000 x 54 x 1,3 8.100 x 54 x 1,6
cutting speed, m/min. 10 - 90 10-115 21-127 20 - 90 continuously variable
motor power, kW 4,0 4,0 4 9,5
weight, kg 1.550 1.750 3.100 4.500
dimensions (LxWxH), mm 2.800 x 1.260 x 2.300 3.150 x 1.260 x 2.250 3.150 x 1.580 x 2.400 2.050 / 2.700 x 3.800 x 2.700
mm at 90° 500 600 500 640
mm at +45° 370 420 700 x 500 550 x 550
mm at +30° 250 270 500 x 500 375 x 550

HIGHLIGHTS

  • Two solidly designed saw blade guides with guide rollers and carbide guide plates
  • Infinitely variable cutting speeds from 10-100 m/min.
  • Programmable sawing functions
  • Precise, fast sawing of Inconel, pure titanium (ASTM F67, ISO 5832-2) ; titanium alloy (ASTM F136, ISO 5832-3) . Possible applications e.g. as tube processing machines, bar and sectional steel machines.
  • Easy change from carbide band saw blade to bi-metal band saw blade

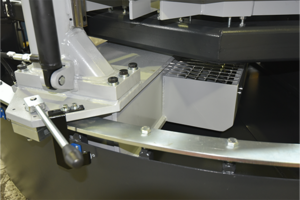

  • Fixed stops up to 90° and 30° for GHA version
  • Saw blade run with 3° angle of inclination (advantageous when sawing profiles)
  • Chip brush
  • Infinitely adjustable saw arm feed
  • Automatic switch-off in the event of saw blade breakage
  • Cutting pressure monitoring
  • Thanks to its precise and even cutting action, the TEBA 502 professional metal band saw is ideal for precise part processing in the medical sector of osteosynthesis systems. For the areas of hand, wrist, elbow, foot, ankle and shoulder as well as anatomical plates, patient-specific metal guides and bone models.
  • Easy to change from bimetal to carbide for a perfect cutting surface.
