Compact design, heavy base frame
Max. Speed up to 2,700 rpm.
Motor spindle brake

Technical Data

WDR 205
WDR 255
In stock
center height, mm 205 255
swing Ø over bed, mm 410 510
swing Ø in the gap, mm 660 760
max. swing over cross slide, mm 230 320
max. between , mm 1.100- 3.000 1.100-3.100
bed width, mm 330 330
spindle bore, mm 63 80
spindle nose 6 8
gear steps 12 12
number/ speed range, min 36-2.000 36-1.500
longitudinal feeds, mm/rev 0,04-1 0,04-1
transverse feeds, mm/rev 0,02-0,5 0,02-0,5
thread pitches metric, mm 0,2-14 0,2-14
thread pitches Whitworth, Gg/1" 2-72 2-72
thread pitches module, mod 0,3-3,5 0,3-3,5
thread pitches diametral Pitch, D.P. 8-44 8-44
drive power, kW 5,5 (7,5) 5,5 (7,5)
quill travel, mm 130 130
quill diameter, mm 65 75
dimensions (LxWxH), mm 2.370-4.410 x 1.100 x 1.800 2.370-4.410 x 1.100 x 1.800
machine weight, approx. kg 2.000-2.150 2.000-2.150/3.650/3.800

Highlights:

  • Fixed stops
  • Powerful tailstock with quick clamping
  • Tailstock with quill feed 1:1 or 1:4
  • Spindle bore up to 102 mm (optional)
  • Hydraulic chuck (optional)
  • Infinitely variable speed (optional)
  • Standard equipment: Offset, strong lathe bed, hardened and ground bed guides

Video

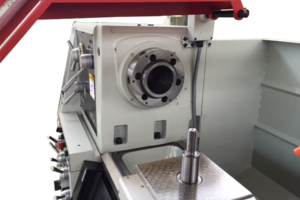

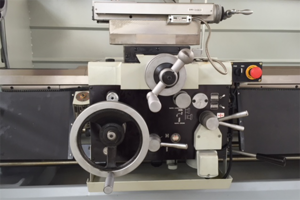

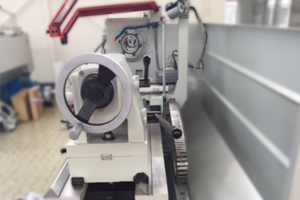

Images
