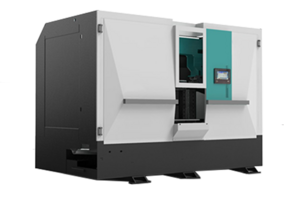

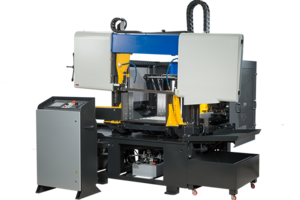

TEBA 330 - 560 A-NC series
Version A-NC for 90° cuts
2-pillar system with closed frame construction

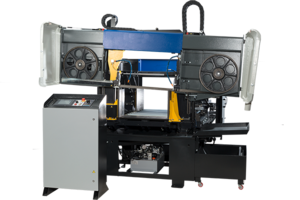

Cast saw frame with carbide guides and lateral guide rollers
technical data
|
TEBA 330 A-NC
|
TEBA 460 A-NC
|
TEBA 520 A-NC
|
TEBA 560 A-NC
|
|
|---|---|---|---|---|
| saw blade dimensions, mm | 3.870 x 34 x 1,1 | 6.100 x 53 x 1,3 | 5.770 x 41 x 1,3 | 7.320 x 54 x 1,6 |
| cutting speed. m/min. | 15 - 90 | 15 - 150 | 15 - 90 | 15 - 150 |
| motor power, kW | 4,7 | 5,5 | 4,0 (Optional 5,5) | 7,5 |
| weight, kg | 1.400 | - | 3.100 | - |
| dimensions (LxWxH), mm | - | - | 3.880 x 2.770 x 3.630 | - |
| mm at 90° | 330 | 460 | 520 | 560 |
| mm at +45° | 310 | 460 x 460 | 500 x 500 | 560 x 560 |
| mm at +30° | 360 x 310 | 460 x 460 | 700 x 480 | 560 x 560 |
HIGHLIGHTS
- Version A-NC for 90° cuts
- Two-column system with closed frame construction
- Cast saw frame with carbide guides and lateral guide rollers
- Cutting height limiter
- Automatic cutting pressure monitoring
- Saw blade breakage monitoring
- Stepless feed
- Infinitely variable cutting speed
- Floating material clamp for material compensation with covered ball screw spindle
- Material feed 500 mm multiple reversing with switchover to pusher feed for short parts
- Material end detection with automatic stop

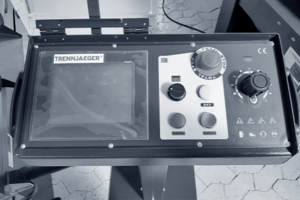

- B&R control with large color display with 999 programs, can be linked as required
- Application as panel saw
